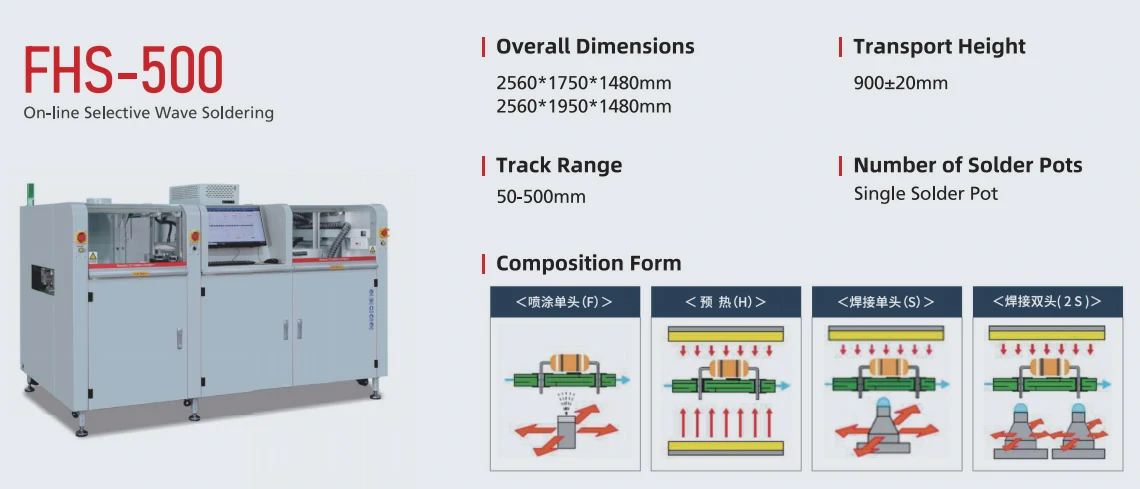

On-line Selective Wave Soldering FHS- 500

Selective Wave Soldering Structural Overview:

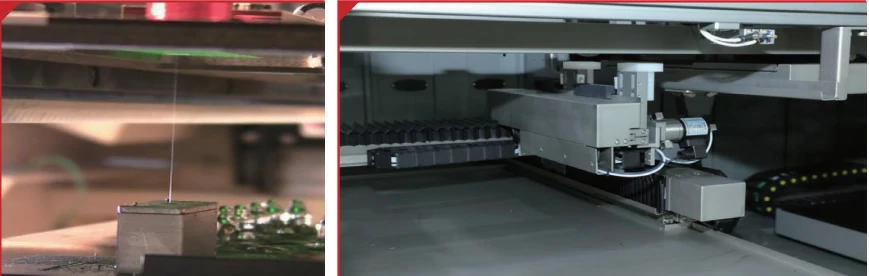

N0.1 Spray:

German-origin piezoelectric ceramic jet valve enables precision flux deposition with minimized consumption and enhanced penetration;

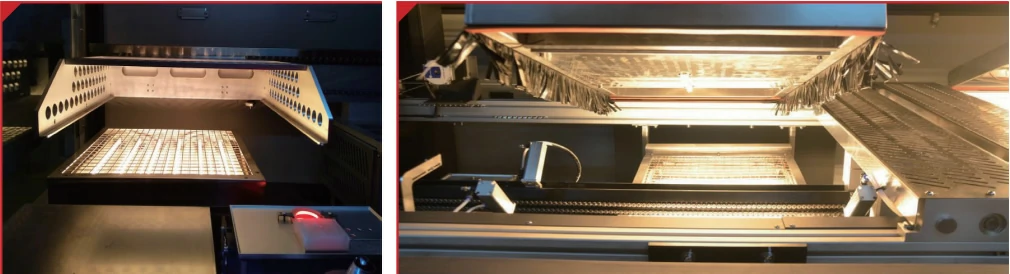

N0.2 Preheating:

Hybrid Heating Modules:

Upper zone: Forced convection airflow;

Lower zone: Far-infrared radiation lamps;

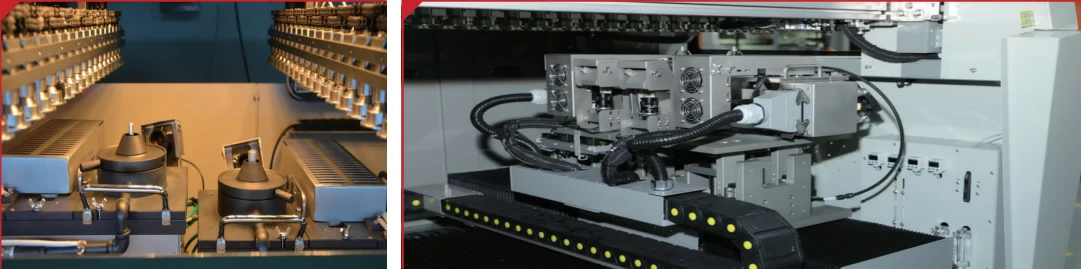

N0.3 Solder:

Titanium Alloy Solder Pot:

Integral structure prevents leakage;

External heating plates ensure uniform thermal transfer36;

Nitrogen-Assisted Process:

Inline heating enhances solder wetting performance;

Reduces dross formation by 40-60% .
