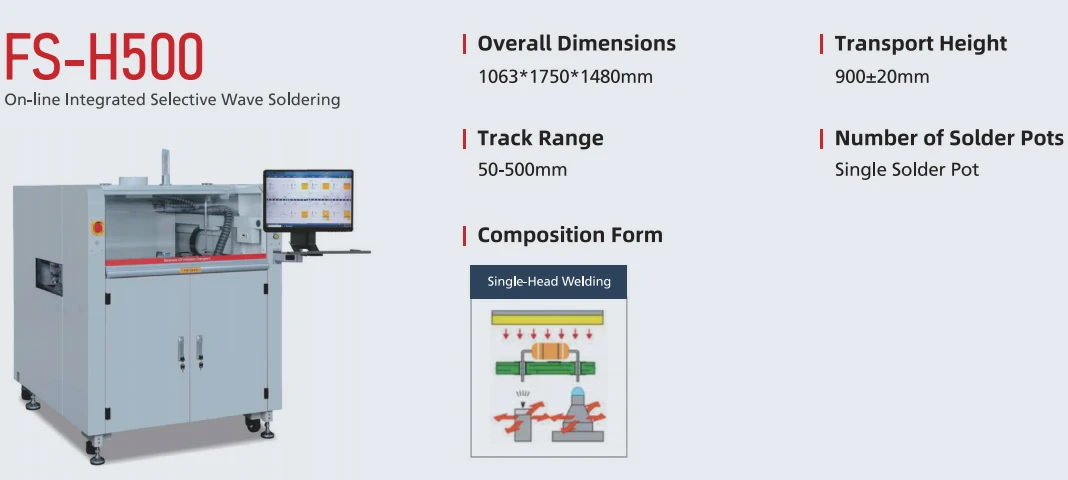

On-line Integrated Selective Wave Soldering FS-H500
CE certified automated soldering system designed for high-precision PCB assembly. Features Industry 4.0 compatibility, nitrogen-assisted welding technology, and multi-nozzle selective soldering heads. Ideal for automotive/aerospace manufacturing in Germany, France, and UK.
PRODUCT CONSULTATION:
Selective Wave Soldering Structural Overview:
N0.1 Spray:
German-origin piezoelectric ceramic jet valve enables precision flux deposition with minimized consumption and enhanced penetration;
N0.2 Preheating:
Hybrid Heating Modules:
Upper zone: Forced convection airflow;
Lower zone: Far-infrared radiation lamps;
N0.3 Solder:
Titanium Alloy Solder Pot:
Integral structure prevents leakage;
External heating plates ensure uniform thermal transfer36;
Nitrogen-Assisted Process:
Inline heating enhances solder wetting performance;
Reduces dross formation by 40-60% .
